The thumb screws should be hand tightened first and then using a screw driver to make sure they have been secured to make proper contact, there’s no need to go overboard making them iron tight.įor those who are installing an Asetek made Hydro H50, H55, H75, H90, H105 and H110 pumps, installation of waterblock will be slightly different. Once all four thumb screws are installed then we can start to tighten them by starting with the top left corner, moving to the bottom right corner, next moving to the bottom left corner and finally the top right corner.

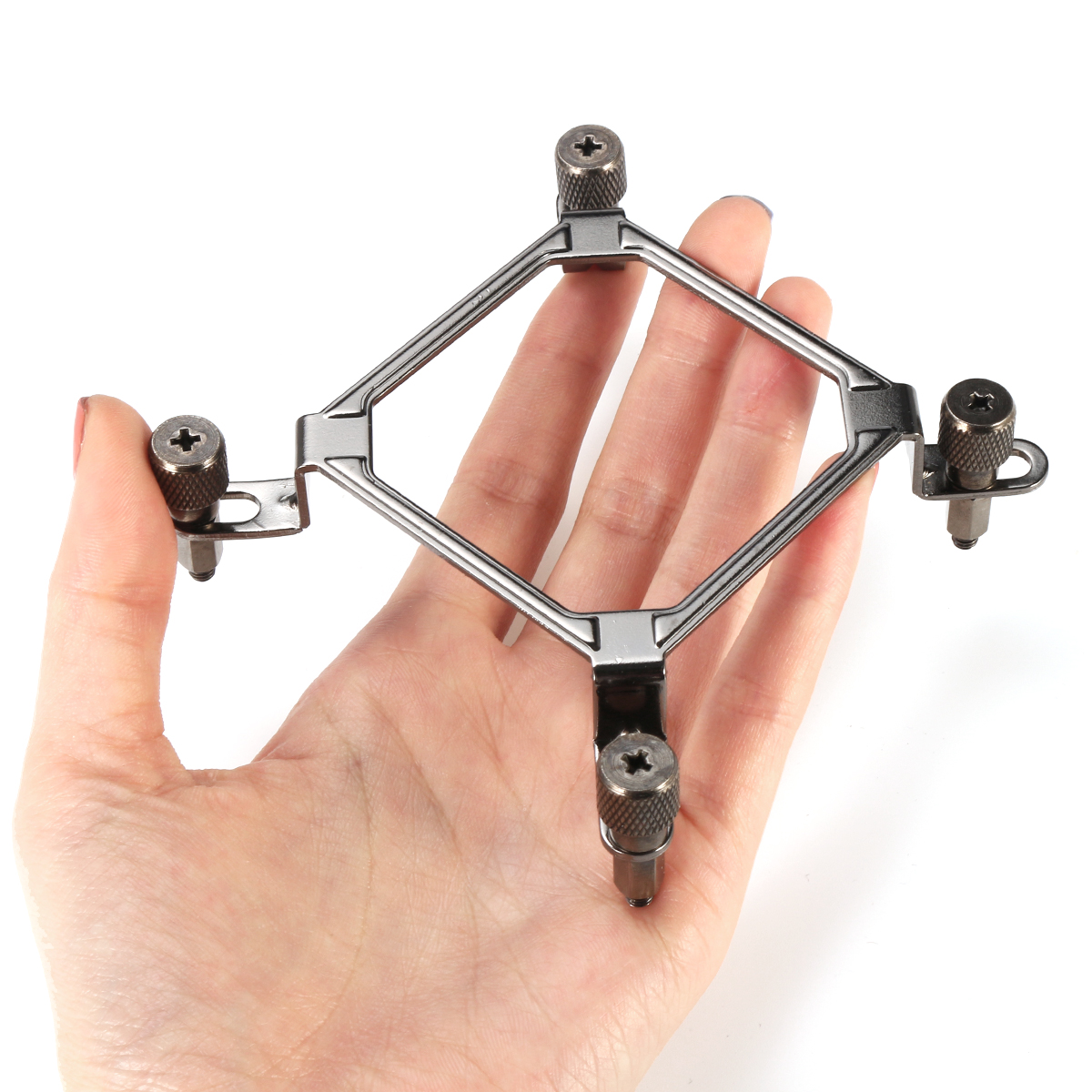

Keep constant pressure holding the CPU waterblock in place, tighten the thumb screws until all four are have reached the mounting bracket but not making contact (this will ensure the mounting bracket is installed correctly and not off center). The process I use when installing a CPU waterblock assembly, is once the mounting plate is lined up correctly and seated to the CPU, continue to apply lite pressure in the center of waterblock while installing all four thumb screws. Align the bracket and pump assembly over the four standoff screws, standoffs will go through the mounting bracket making it ready to secure. Step 4, position the mounting bracket over the top of the pump assembly and we're ready to install.
#Corsair hydro series h80i v2 water lifespan install#
This will secure your backplate making it ready to install the CPU waterblock (on some Mainboards the backplate may feel loose, don't worry). Then install the standoff screws from front side into the backplate mounts around the CPU socket until hand tight. Next, adjust the mounts at the four corners of backplate till they line up with the holes on the Mainboard for your specific CPU socket.
It’s vital for a successful mounting having these two notches facing upward towards the top of the Mainboard and going around the two screws holding the CPU socket in place (if this part is skipped or improperly installed the cooler will not make proper contact). Step 3, installing the Intel backplate onto the backside of Mainboard starts with the orientation of the notches in the backplate. Intel: LGA 115x, 1366 mounting hardware (notice LGA 115x standoff screws have the same amount of thread on both ends) Additionally those who are installing a Asetek made Hydro H50, H55, H75, H90, H105, H110 or the newly launched H80 GT and H100 GTX pumps can also skip this step since your backplate is of a different design.Ī closer inspection reveals two notches made into one side of the backplate (the direction of the notches is vital when installing the backplate onto a LGA 115x or 1366 Mainboard) If you're using Intel: LGA 2011, 2011-v3 or AMD: AM2, AM3, FM1, FM2 you can skip this step since you'll be using the backplate that came with your MainBoard. Step 2, this part of the guide will pertain to Intel LGA 115x and 1366 mounting when installing a H60, H80, H100 and the newly launched H110 GT Series Pumps. 1 (included hardware) and compare the pictures with your hardware. Simply open the Corsair quick start guide to page no. Step 1, upon opening your new Hydro Series Pump, take a few minutes to lay out all included parts on a flat surface and verify needed Mounting components were included in the box. I noticed a number of forum members are having problems with the pump installation and higher than normal CPU temperatures, this may be related to Corsair instructions being basic and or vague when it comes to a successfully mounted Hydro Series Pump. This SGC guide will help with the proper installation of Corsair Hydro Series pumps. Unofficial Hydro Series Installation Guide
